Introduction
The new H class high temp resistant dry-type transformer (rated for 180℃) has been delivered recently. These transformers is custom-designed for the high-temperature workshop condition of a customer's steel plant, offering a 60% longer service life compared to conventional products.
In terms of energy efficiency, the transformers utilize a three-dimensional wound core structure, which reduces no-load losses by 25%. This is expected to save the plant approximately 180,000 RMB in electricity costs annually (based on the 2500 kVA model).
Benefits of VKE H Class High Temp Resistant Dry-type Transformer
Superior Materials
Core: high-quality grain-oriented silicon steel to reduce no-load losses and noise level
Windings: premium copper wire to provide optimal conductivity and reduce heat generation
Insulation: high-grade epoxy resin to protect against electrical faults and environmental stress
Casings: durable enclosure to safeguard internal components from external factors like moisture
Long Service Life
High-strength insulation materials and advanced manufacturing processes ensure excellent moisture resistance and corrosion protection in dry types. Under normal operating conditions, they can deliver stable and reliable performance with a service life of 20-30 years.

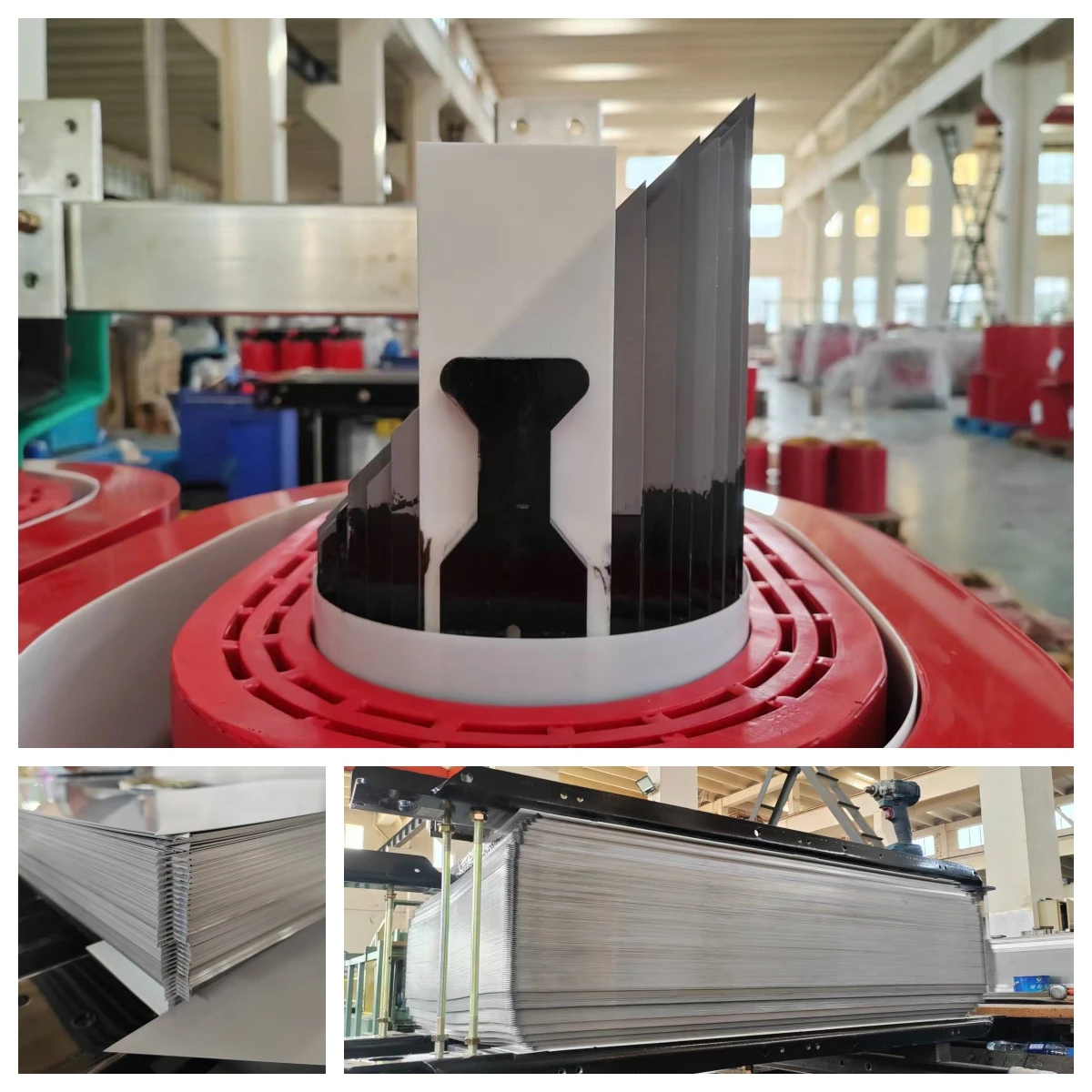

High-grade Silicon Steel Sheet - Minimizing core losses in high-performance transformers
Lower Fire Risk
Epoxy resin casting or air insulation fundamentally removes oil leakage and explosion risks or fire hazards. Dry types provide a safer option for locations with stringent fire safety requirements including high-rise buildings, subways, hospitals, data centers.
Pollution Free
No oil leakage issues - prevents potential contamination of soil and water sources
Zero emission of hazardous gases - fully compliant with green environmental standards
Dry types are suitable for environmentally sensitive urban areas or industrial parks with strict ecological requirements.

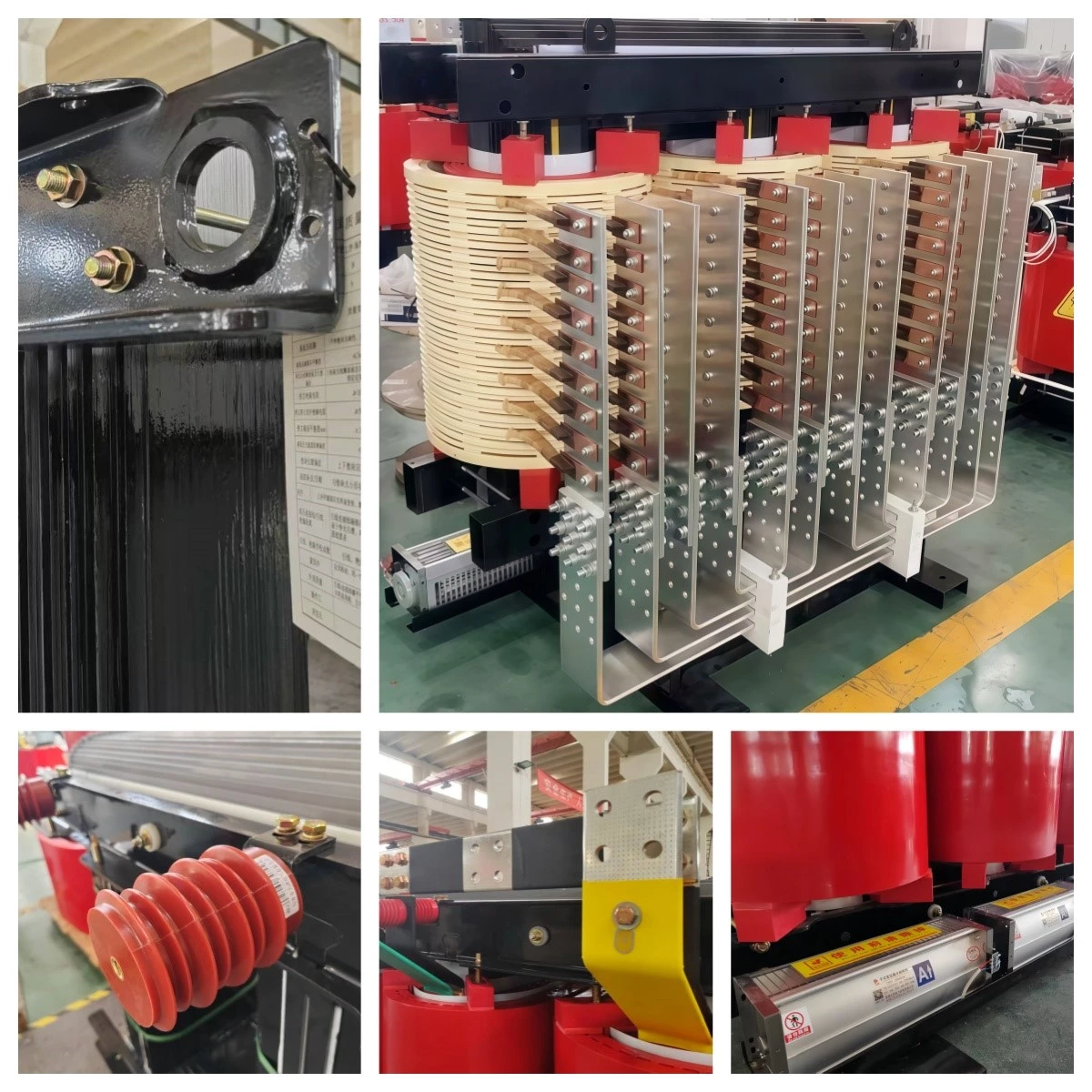

Product Details
Thickened materials - Exceptional mechanical strength & high short-circuit withstand capability
Corrugated fin cooling element - Fast & even heat dissipation
Cross-flow cooling fan - Effectively reduces temperature rise, increases heat dissipation area & enhances power capacity
Easy Installation
Dry types offer flexible installation options due to their compact size and lightweight construction. Their space-saving design makes them ideal for space-constrained applications like commercial complexes and renewable energy generation systems.
Quality Assurance of VKE H Class High Temp Resistant Dry-type Transformer
Each transformer must undergo a rigorous and comprehensive testing process to ensure that its performance and reliability meet both industry standards and customer needs. Our quality control covers everything from raw material inspection, component assembly, to final electrical and mechanical performance tests.

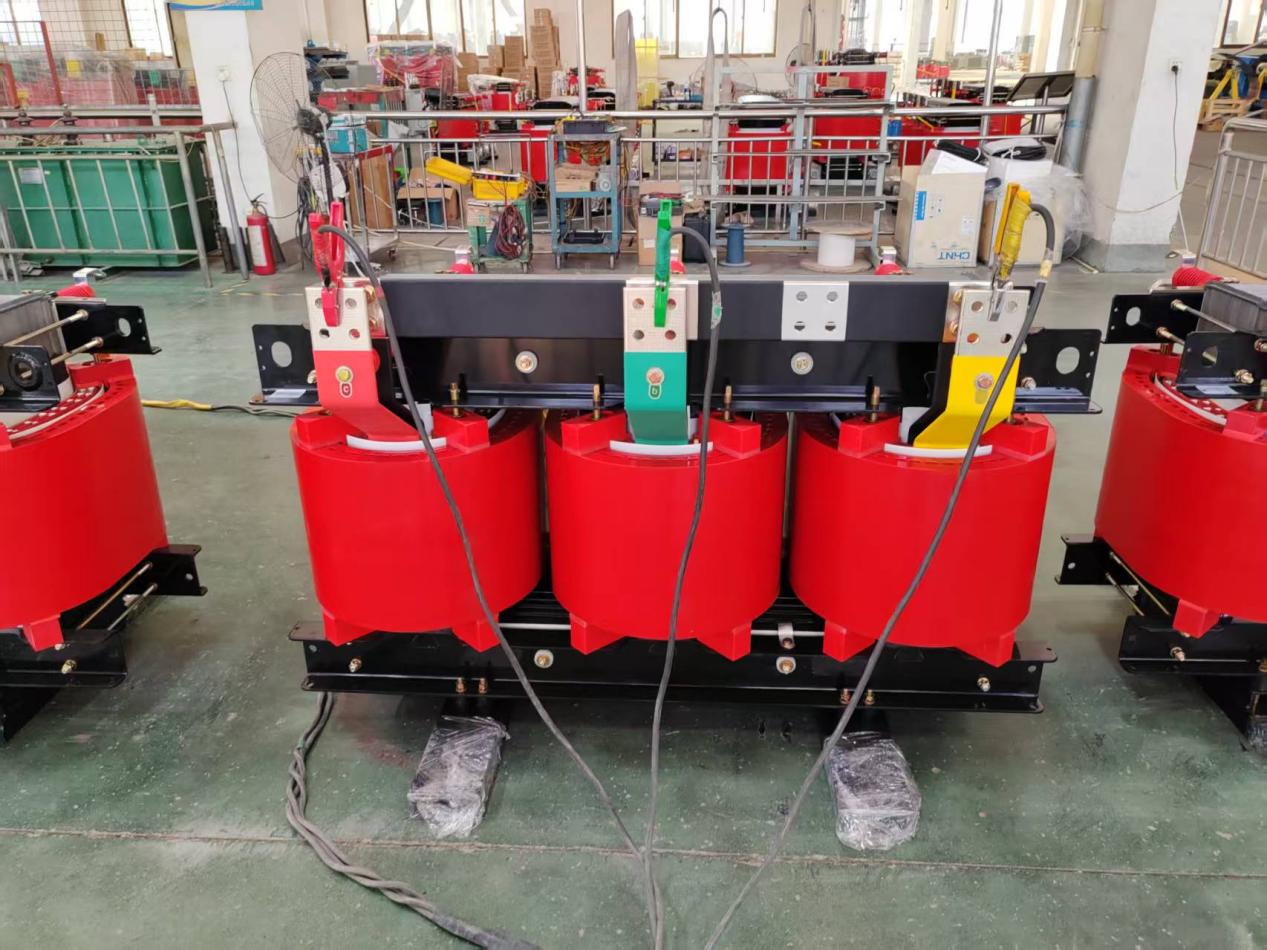

Testing - Routine tests to verify transformers' performance
Routine tests items include:
Resistance Measurements
Ratio, Polarity and Phase Relation Tests
No-load Losses and Excitation Current Tests
Impedance Voltage and Load Losses Tests
Operation Tests of All Devices
Lightning Impulse Tests
Applied-voltage Tests
Induced-voltage Tests
Final Checks - A comprehensive final inspection before leaving the factory
We maintain rigorous quality control standards to ensure reliable and long-term performance of every transformer. This helps our customers minimize downtime, reduce maintenance costs and achieve greater operational value.
FAQ
Q:Why choose us?
We have a strong R&D team with over 20 years of transformer design experience and familiarity with many international transformer standards such as IEC, IEEE/ANSI, CSA, etc. They have over 20 years of instrument experience. Excellent and stable quality with the best cost-effectiveness. Provide various payment terms.
Q: Can I visit your factory?
A: Of course, we warmly welcome you to visit Jiangsu First Power. Please try contacting our sales representative via email first. We will arrange the most reasonable plan for your itinerary.
Q: What is your minimum order quantity?
A: The minimum order quantity is generally 1-2 pieces, and customized products depend on demand.
Q: Can you provide customized services?
A: Of course, customized services are available, including OEM and ODM. Please let us know your customization requirements for the product, and we will provide you with a satisfactory answer.
