Description

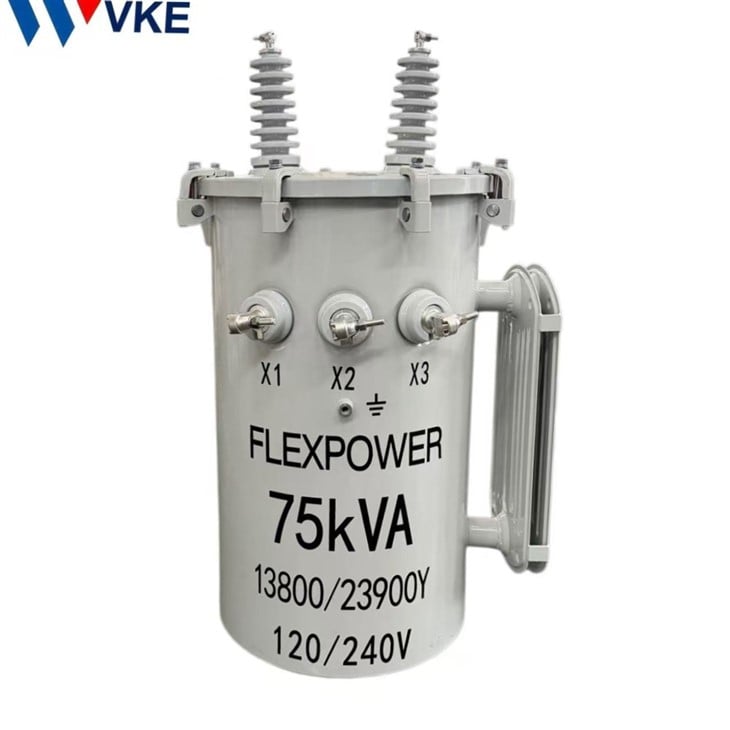

75 kva pole-mounted transformer is a small distribution transformer that can be installed on poles. It is mainly used for the conversion between high and low voltage, depending on the specific requirements of the customer. It is suitable for areas with scattered populations and provides reliable power transportation. It also saves a lot of space due to its overhead installation environment.
Application
75 kva pole-mounted transformer, with its economy and practicality, is widely used in urban and rural distribution networks and is an important device for ensuring reliable power supply to low-voltage users.
Technical parameters
| Rated capacity (kVA) |
H.V.(kV) | L.V.(V) | No-load loss(W) | Load loss(W) |
| 10 | 12 13.2 13.8 34.5 |
120 240 400 480 |
36 | 120 |
| 15 | 50 | 195 | ||
| 25 | 80 | 290 | ||
| 37.5 | 105 | 360 | ||
| 50 | 135 | 500 | ||
| 75 | 190 | 650 | ||
| 100 | 210 | 850 | ||
| 167 | 350 | 1410 |
Main functions and roles
Voltage conversion: Convert 10-35kv ultra-high voltage into low voltage that residents can use directly, such as 220v or 380v.
Power distribution: 75 kva pole-mounted transformer can serve as a hub for power conversion, transmitting voltage to the areas of each user.
Safety isolation: By transmitting energy through electromagnetic induction, electrical isolation between the high and low voltage sides is achieved, enhancing the safety of electricity usage.
Load matching: Match the impedance of transmission lines with that of user loads to reduce power transmission losses.
Key features
1.Compact structure & flexible installation Cylindrical design and wound core minimize size and weight, suitable for pole mounting and various installation conditions.
2.Low loss, high efficiency & low noise It features low no-load loss, outstanding energy efficiency and quiet operation.
3.Fully sealed & maintenance-free The sealed tank resists moisture and corrosion, adapting to harsh outdoor environments with long-term maintenance-free operation.
4.High mechanical strength & strong durability Uniform stress distribution brings excellent vibration resistance and short-circuit withstand capability.
5.Stable voltage & wide application It delivers steady output voltage, ideal for residential, commercial, street lighting and construction power supply.
Precautions
75 kva pole-mounted transformer must comply with power requirements and ensure a safe distance.
Transformer oil needs to be checked regularly to ensure its sealing and insulation properties.
The load must not exceed the specified limit and the load rate should be less than 80%.
Why choose us
JIANGSU VKE TRANSFORMER CO., LTD.
Founded in 2003, Jiangsu VKE Transformer Co., Ltd. is a professional manufacturer of high-quality transformers. With two production bases covering 33,660 m² and a dedicated team of 110+ employees, we achieve an annual production capacity of 6,000 MVA.
We specialize in manufacturing a complete range of transformers:
• Pad Mounted Transformers
• Pole Mounted Transformers
• Oil Immersed Transformers
• Dry Type Transformers
• Compact Substations
VKE ensures that every transformer we deliver undergoes rigorous quality checks. We offer a one-stop service, including quotation, manufacturing, installation, commissioning, and training. With high-performance products and top-quality service, our products are sold in many countries and regions worldwide. We are committed to becoming your trusted transformer partner.

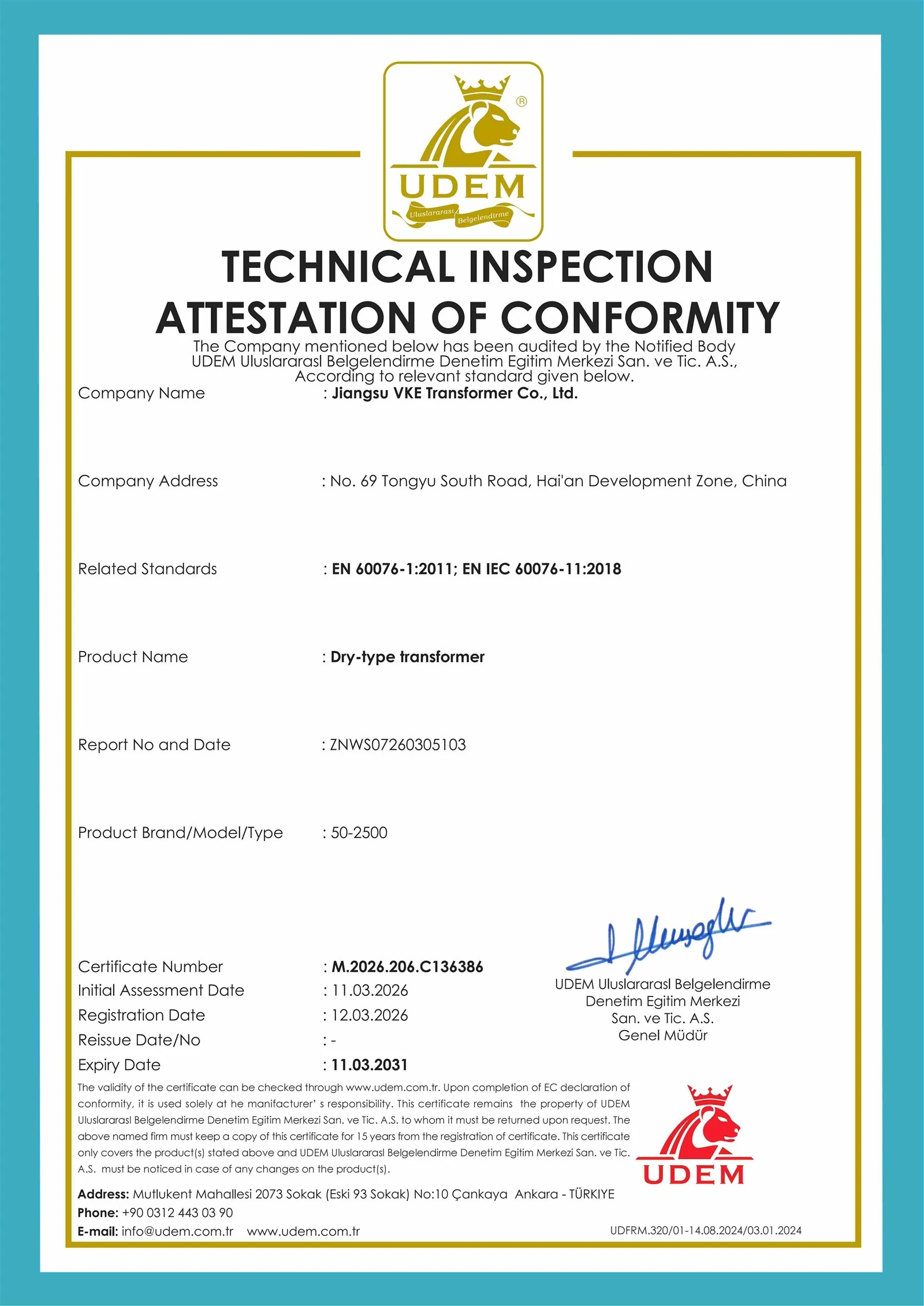

Certificates
 |
 |
 |
 |
 |
Q
FAQ
Q:Why choose us?
A: We have a strong R&D team with over 20 years of experience in transformer design and are familiar with many international transformer standards.
Q: May I visit your factory?
A: Of course, you are warmly welcome to visit Jiangsu No.1 Power. Please try to contact our sales representative first by email or phone. We will make an appointment and the most reasonable plan for your transportation.
Q: What is your minimum order quantity?
A: The minimum order quantity for ordinary items is very low. For customized projects, it depends on different requirements.
Q: What can I buy from you?
A: 10-35kV oil-immersed distribution transformers, dry-type transformers, pole-type transformers, combined transformers, pad transformers, etc.
