In transformer manufacturing, insulation reliability is fundamental to safe and stable operation. To ensure that transformers can withstand sudden and severe overvoltage conditions in actual service, our testing facility is equipped with a Lightning Impulse Test Set designed to simulate the extreme electrical stresses caused by natural lightning.
Lightning strikes can generate transient overvoltages with extremely steep voltage wavefronts, subjecting transformer insulation systems to intense electrical stress within a very short period of time. The lightning impulse test recreates these severe conditions in a controlled laboratory environment, providing a critical assessment of the transformer's insulation strength and overall design reliability.
Simulating Extreme Lightning Conditions

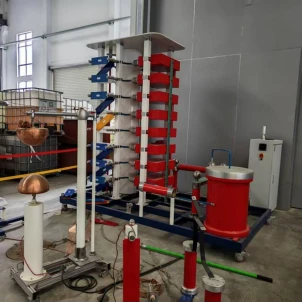

During the lightning impulse test, a standardized impulse voltage is generated and applied to the transformer under test. The resulting high-voltage impulse simulates the transient overvoltage that may occur when a transformer is exposed to lightning-related electrical disturbances.
The test places demanding requirements on the transformer's insulation system, including the insulation between windings, between windings and ground, and across other critical insulation structures. By applying a controlled but severe electrical impulse, engineers can evaluate whether the insulation system can withstand extreme transient stress without breakdown or flashover.
A Critical Verification of Transformer Insulation
Unlike routine electrical tests, the lightning impulse test focuses on the transformer's ability to withstand short-duration, high-amplitude overvoltage events. It is therefore an important part of transformer type testing and insulation design verification.
The test can help identify potential weaknesses in the insulation system and verify the effectiveness of key design parameters, such as insulation coordination, electric-field distribution, winding structure, and insulation clearances.
For transformers intended for demanding power-system applications, this provides an additional level of confidence in their ability to withstand severe transient conditions throughout their service life.
Supporting Reliable Transformer Design
The Lightning Impulse Test Set is not simply a testing device-it is an important tool for validating transformer design and manufacturing quality.
By combining advanced high-voltage testing equipment with rigorous quality-control procedures, our engineering team can evaluate transformer performance under simulated extreme conditions before products are delivered to customers. The test results provide valuable technical data for design verification, process optimization, and continuous improvement.
These comprehensive testing procedures help ensure that every transformer leaving the factory is built with the necessary insulation strength and reliability for demanding operating environments.
Reliability Tested Beyond Routine Conditions
A transformer may operate normally for years under regular system voltage, but its insulation system must also be capable of responding to sudden and unpredictable transient events. Lightning impulse testing provides a controlled way to challenge the insulation system under one of the most severe overvoltage conditions encountered in power networks.
Through strict testing and verification, VKE Transformer continue to strengthen our commitment to high-quality transformer manufacturing, reliable insulation performance, and long-term operational safety.
From design and manufacturing to final testing, every stage is focused on one goal: delivering transformers that are engineered to withstand demanding real-world conditions and perform reliably when it matters most.
