Definition
A transformer's turns ratio is defined as the ratio of the high-side voltage to the low-side voltage. If the high voltage is 220V and the low voltage is 110V, then the turns ratio is 2:1.

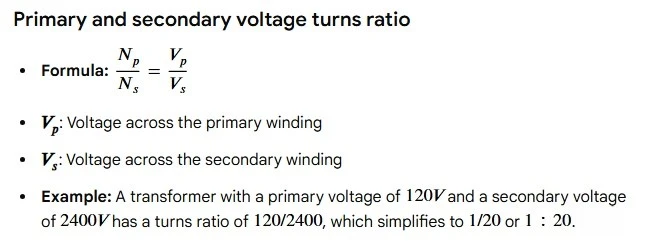

Formula
Relationship Between Turns and Voltage
Voltage Stability
The turns ratio acts like the "volume knob" of the power system. Turn it up, and the voltage rises; turn it down, and the voltage drops. You need to adjust it carefully to prevent the system from experiencing "rapid increases" or "rapid drops" in voltage. Controlling the turns ratio properly ensures the power system operates smoothly.
Power Transmission Capacity
The turns ratio also affects the transformer's power transmission capability. Reducing the turns ratio is like turning down a fan's speed - the airflow slows, the current decreases, and the load capacity drops. When adjusting the turns ratio, you must consider of its impact on power transmission efficiency and load capacity to prevent a significant drop in power delivery.
Dry type transformers, rigorously tested, on their way to final installation.
Oil immersed transformers, securely packed, ready for shipment.
Safety Hazards
Improper turns ratio adjustment can cause the transformer's iron core to overheat. This is like charging an electronic device for too long and the battery getting hot. If not handled properly, it can lead to the iron core overloading, heating up, and even burning out. Therefore, every time you adjust the turns ratio, you need to keep a close watch to prevent the iron core from overheating.
Adjustments in Special Scenarios
In specific situations, such as during construction or maintenance, adjusting the turns ratio is like giving the power system a "new hairstyle" - it helps the system adapt better to the environment. However, even a minor error in adjustment can cause system instability or equipment failure. Precise setting is required to ensure compatibility with all system parameters.
Conclusion
A transformer's turns ratio is the "magician" in the world of electricity - it regulates voltage levels and ensures the stable operation of the power system. When adjusting the turns ratio, it is crucial to be as careful as adjusting a precision instrument, ensuring the power system remains safe and reliable.
