Introduction

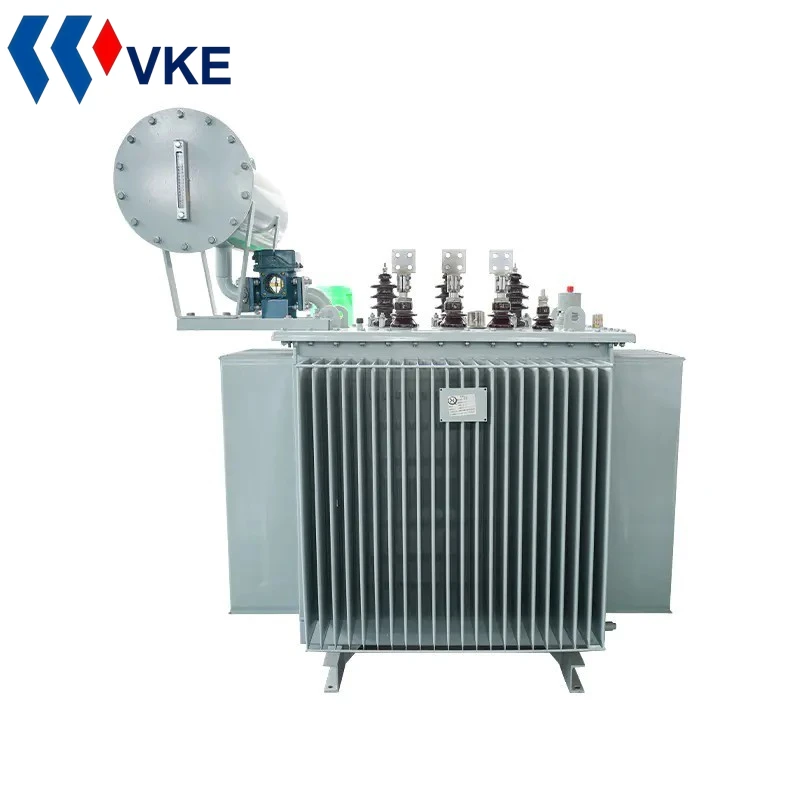

The VKE 22 kV 200 kVA transformer delivers efficient and dependable power distribution for medium-voltage applications. Designed with high efficiency, robust reliability, and user-friendly maintenance, it provides long-lasting performance and operational stability. Ideal for industrial, commercial, and public power systems, it offers a trusted solution for safe and efficient energy distribution.
Technical Specifications
|
Rated Capacity |
50~2,500kVA |
|
Rated HV |
22kV |
|
Rated LV |
0.4kV |
|
Vector Group |
Dyn11/Yyn0 |
|
Impedance |
4% |
|
Temperature Rise |
60/65K |
|
Core Material |
Silicon Steel |
|
Winding Material |
Copper/Aluminum |
|
Cooling System |
ONAN/ONAF |
|
Transport Packaging |
Wooden Crate |
We offer standard oil immersed transformers, and also provide customized adjustments based on your specific requirements.
Please contact us for more details.
Advantages
Efficiency
-Superior raw materials and advanced electromagnetic design successfully reduce no-load losses to industry-leading levels.
-Hermetically sealed corrugated oil tank improves heat dissipation while preventing the oxidation and moisture ingress of insulation oil.
Safety
-Multiple protective devices, such as pressure relief valve, gas relay and oil level gauge, can respond quickly to various abnormal situations.
-Corrosion-resistant steel enclosure can reach an IP55 protection level after specialized surface treatment.
-All transformers undergo strict testing, including withstand voltage test, sudden short-circuit test, etc., to ensure safety compliance.
Cost
-Optimized design reduces initial procurement costs, and also saves power costs due to lower operational losses.
-Strategically positioned components make routine inspections easier and standardized accessories also lower ongoing maintenance costs.
Space-saving Design
-Upgraded structure, plus flexible options for inlet/outlet connections, can achieve 20% volume reduction to address space constraints in modern facilities.
-Carefully designed lifting points and transport fixtures make installation convenient and efficient, easily adapted to both new projects and upgrades.
With proven reliability, safety and cost-efficiency, this 22 kV 200 kVA transformer has been widely used in industrial parks, commercial complexes and infrastructure projects. We are confident that this transformer will become a dependable partner in your power system.
Technical Q&A
Q: How to determine if the oil needs to be changed or filtered?
A: • Oil Quality Testing: regular checks for breakdown voltage, water content and acid value
• Visual Signs: darkened oil or the increase in suspended particles
• Insulation Failure: Determined through a withstand voltage test
Q: What protection devices are essential for the transformer?
A: •High Voltage Side: circuit breaker or fuse
•Transformer Protection: gas relay, pressure relief valve, oil temperature gauge
•System Protection: lightning arrester
•Monitoring Devices: oil level gauge, online oil chromatograph (premium models)
Q: How to handle oil leakage?
A: • Minor Leaks: tighten bolts or replace gaskets
• Severe Leaks: shut down the equipment, drain the oil, and repair or replace components
