Long Life Sealed Distribution Transformer

The long life sealed distribution transformer features a hermetically sealed enclosure filled with dielectric insulating liquid, typically oil. This type of transformer incorporates a sealed enclosure with flexible corrugated walls or fins designed to handle thermal expansion and contraction. This design ensures that no air or moisture can enter the enclosure, thereby reducing oxidation and degradation risks of the insulating oil.

The long life sealed distribution transformer features a sealed enclosure to isolate the internal insulating oil from the external environment. This design prevents the intrusion of moisture, dust and harmful gases, so as to enhance the transformer's resistance to humidity and contamination.

The fully enclosed design eliminates the risk of insulating oil leakage, hence preventing soil and water pollution. High ignition point and eco-friendly oils or dry type insulation materials are frequently used by modern models to reduce harmful emissions.

A staff is assembling the core components of the transformer.

The insulating oil, isolated from air, experiences slower aging, while the corrosion-resistant tank and high-temperature-resistant internal components ensure high stability during long-term operation. Some models employ the vacuum oil filling process to eliminate air bubbles. This measure further reduces partial discharge risks, thereby extending the durability of core components.

The sealed transformer requires no frequent oil replenishment or impurity removal - only remote monitoring. In addition, the modular design makes it easier to replace faulty components, and combined with the long lifespan feature, the maintenance cost throughout the entire life cycle is 30%-50% lower than that of ordinary models.

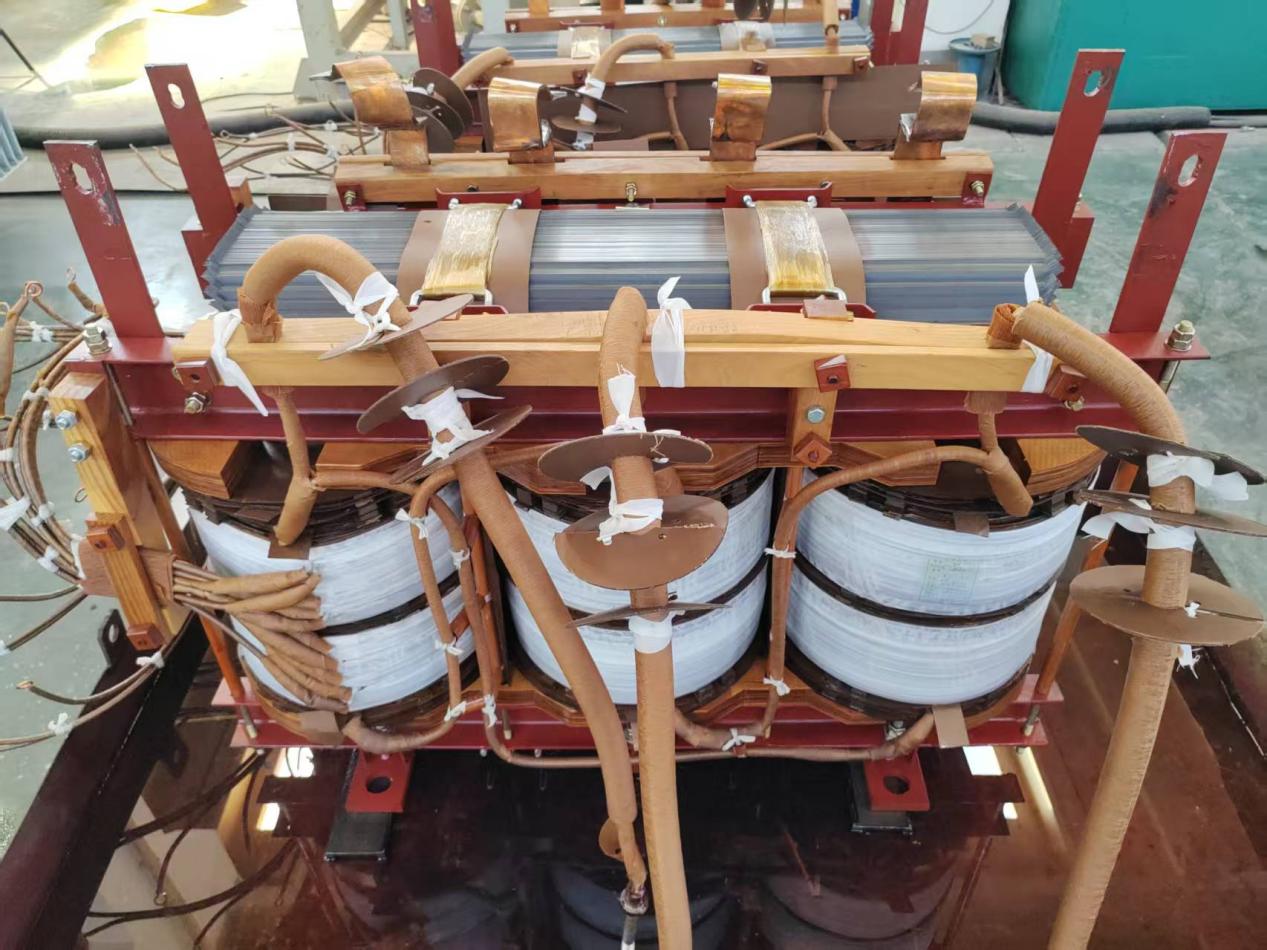

Semi-finished components are ready for oil tank assembly.

The insulating oil, not exposed to oxygen, has an extremely low risk of ignition or explosion, while the tank is reliably grounded, with minimal leakage currents. Smart models are equipped with real-time temperature and pressure alarms, which can promptly warn of potential hazards.

The high-quality silicon steel core (amorphous alloy core optional) reduces no-load losses by 15%-30% compared to traditional models. Besides, the sealed design minimizes oil flow friction and eddy current losses to achieve an operational efficiency of over 98%.

The entire core and windings will be sealed inside the tank.

The long life sealed distribution transformer is commonly used in harsh environments like chemical plants, mines and subways, as well as in hospitals and data centers where power reliability is critical. Outdoor models can be directly installed in streets or communities, and even employed in renewable energy projects such as offshore wind and solar farms.
